MEIHO C-RINGS


Go To Application
[ click the picture to see Application ]

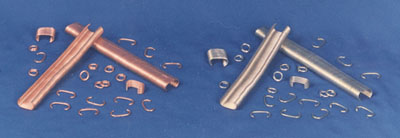

Meiho C-Ring is a new technology for good operation and productivity. Implicated with Meiho C-Ringer, makes the job of fastening easier by just setting a pusher each time. The Meiho C-Ring collated, into stripes by tape, which is easy to load.

  TYPE OF MEIHO C-RINGS
C.D.H G.D.H EDH 47EDS 47CDS 47GDS SD
Materials Liqure Finished Wire Galvanized Coated Wire PVC Coated Wire PVC Coated Wire Liqure Finished Wire Galvanized Coated Wire Stainless Wire
Diameters 1.8 mm 1.8 mm 1.8 mm 1.6 mm 1.6 mm 1.6 mm 1.8 mm
Dim after clinch 13 mm (max)

5 - 6 mm (min)
13 mm (max)

5 - 6 mm (min)
13 mm (max)

5 - 6 mm (min)
8 mm (max)


3 - 4 mm (min)
8 mm (max)


3 - 4 mm (min)
8 mm (max)


3 - 4 mm (min)
13 mm (max)

5 - 6 mm (min)
Tensile Strength 75-85 kg/mm2 75-85 kg/mm2 75-85 kg/mm2 35-45 kg/mm2 35-45 kg/mm2 35-45 kg/mm2 50-60 kg/mm2
Packing Quantity 10,000 pcs/box

72 boxes /pallet
10,000 pcs/box

72 boxes /pallet
10,000 pcs/box

72 boxes /pallet
20,000 pcs/box

64 boxes /pallet
20,000 pcs/box

64 boxes /pallet
20,000 pcs/box

64 boxes /pallet
10,000 pcs/box

72 boxes /pallet
